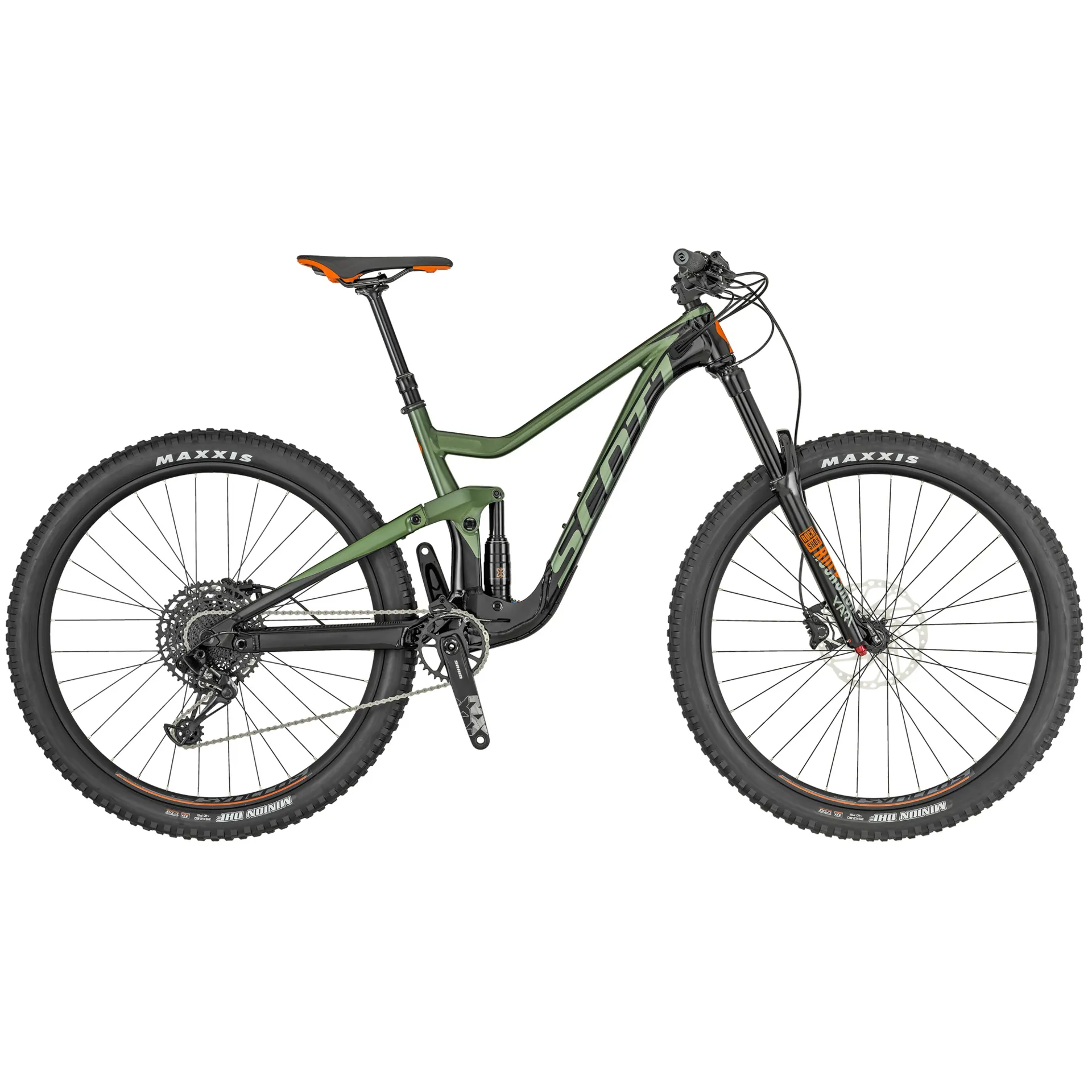

The Ransom. 170mm of trail munchin', climb crushing, stage winning all day pinning mountain biking excellence. The 930 comes equipped with our TwinLoc Suspension System, a Sram eagle groupset and Syncros components to help you get away with murder, at a fraction of the cost.
Our integrated chain guide was developed in collaboration with the SCOTT SRAM MTB Racing Team.
The idea behind was to create a reliable component that helps to avoid dropping chains but that was light, versatile and integrated in the design of the frame. The new Spark chain guide weighs just 23 grams and is easy to assemble thanks to the smart assembly system and can accommodate chain rings from 30 to 36 teeth.
With our mountain bikes, we try to achieve ultimate versatility. These specific models can switch from 27.5" to 29" wheels with nothing more than the flip of a chip. No need to change the fork, all you need to do is flip a shock mount chip, change your wheels and off you go. The flip chip allows us to maintain a similar BB height when switching from one wheel size to the other which is key to keeping handling similar for both wheel sizes. With 27.5" wheels, you can run either 2.5", 2.6" or 2.8" tires. For the 29er, anywhere from 2.4"-2.6" is good to go.
We have adopted the new Metric shock sizing standards with a Trunnion mount. Since the shock body now extends between the two lower mounting bolts, our suspension partners have more design space. This means the shock has more stroke for the same eye to eye length. Stroke on the 165mm eye to eye shock has increased from 38mm to 40/45mm.The Trunnion standard also offers structural gains. The shorter shock enables us to build a very compact frame and shock package, which integrates tightly to the seat tube. We managed to have a very tiny yet stiff linkage-lighter than ever. Thanks to the Trunnion mount construction, stand over height on the new Spark is very low. We are still able to realize a super compact full suspension frame and provide the ability to mount both a small and big water bottle.
With TwinLoc, a rider can effectively control the complete frame, fork, and shock as a system. Why does this matter? A bike with 150mm of suspension travel, correctly set up, has more sag than a bike with 130mm. It's that extra travel that makes it more fun to ride and more capable on the descents, but the greater sag has an oversized effect on the bike's geometry and climbing performance. That's where TwinLoc matters.
TwinLoc helps manage the sag effect in several ways. Whereas most systems only increase low-speed compression in an effort to gain pedaling efficiency, TwinLoc allows us to not only change compression damping, but also to change the spring curve, dynamically altering the geometry of the bike. In Trail mode, the shock is not only firmer, but it has dynamically less travel. The bike sits higher, maintains a steep seat angle for those climbs, and becomes more agile. We also offer a third, full lockout mode for going up in the most efficient manner possible.
These unique settings optimize climbing geometry, even on longer travel bikes. We can eliminate the "long travel effect" that can rob your pedaling efficiency, but we're not robbing you of the full-fun, 150mm travel when you point it downhill. From a race setting, to a lunch ride, to an after work trail shred, being able to switch from mode to mode depending on a trails profile at the push of a lever is paramount to riding faster and having a damned good time.
When designing the Ransom, speed was a topic that was always at the forefront of discussion. Naturally, the geometry of the bike was selected to accompany the type of riding it is intended for. With 170mm of travel, this unique 29er has a geometry that will get you to the top comfortably and then back down faster than ever before. Long, slack and stable at speed, this rig can tame any descent. However, we didn't want to cut any corners with regards to seat angle or position. Where we live, big days involve plenty of climbing, and we think it's important that climbs can be as fun as the downs – proper climbing position is essential to that.
