The Nomad's reputation is built on consistently pushing the envelope of how DH a bike can get while still remaining usable on most trails.
The Nomad's reputation is built on consistently pushing the envelope of how DH a bike can get while still remaining usable on most trails.
Santa Cruz

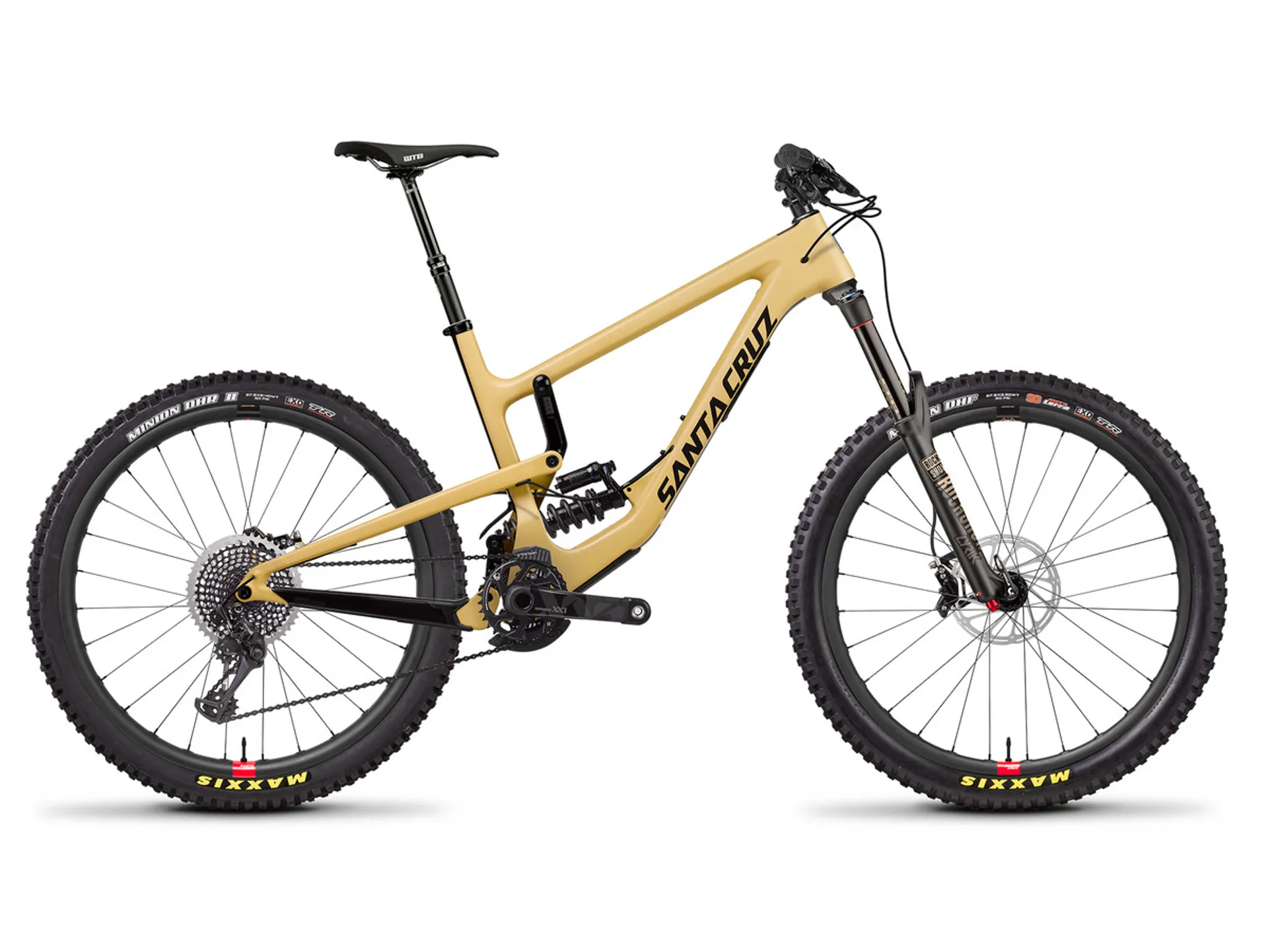

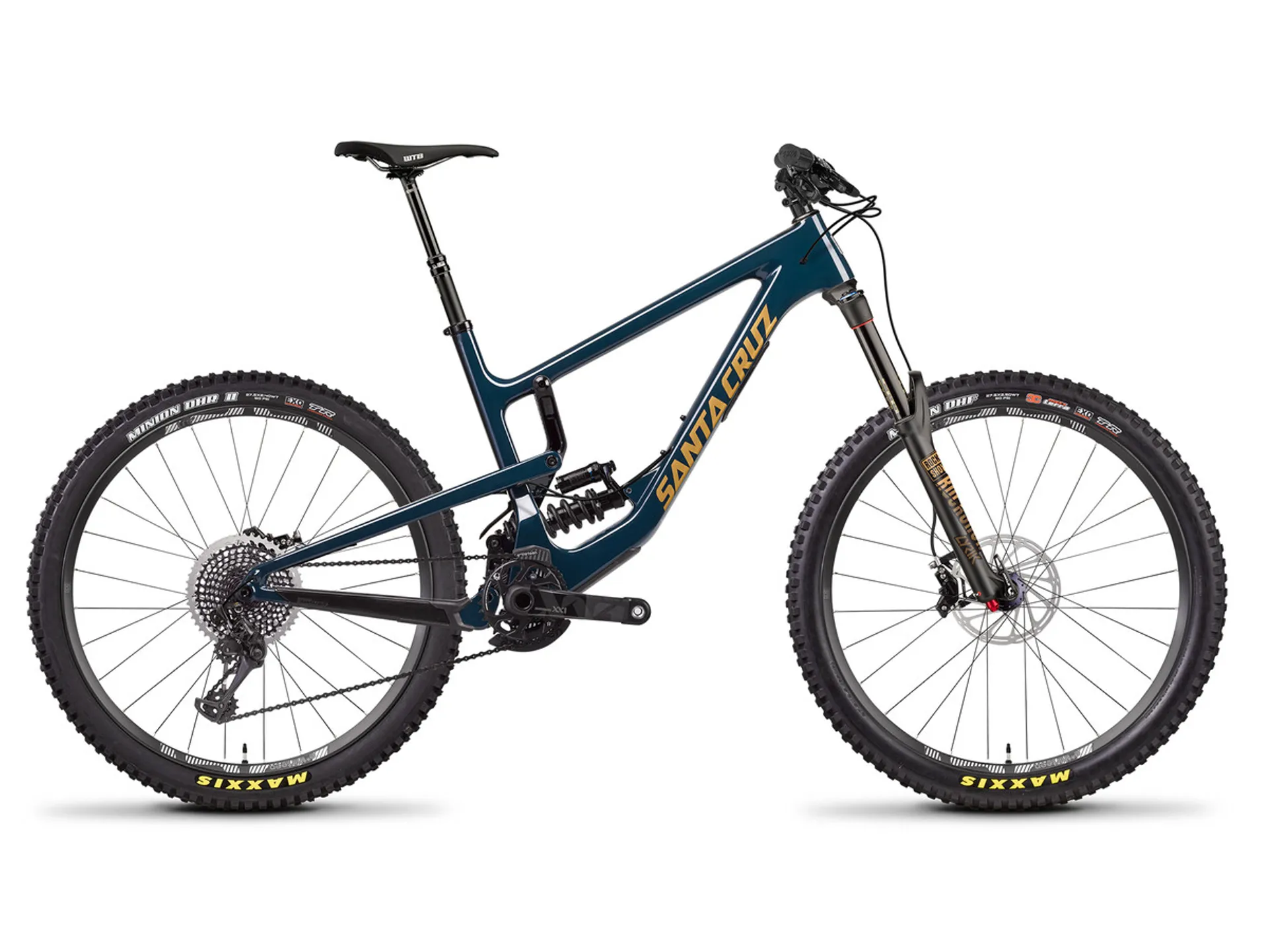

Santa Cruz Nomad V4 CC XX1 27.5 Build

£6,799.00
Click & Collect for Free
I'm a Pre-launch Product. Find out more
Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on the Undetermined

Hassle free returns

Returns: We hope everything arrives to you as expected.  If a order(s) is broken or spoiled when it is delivered then you should notify us as soon as possible or in any case within 7 days of delivery, otherwise the returns policy becomes invalid.

You will have the option of returning the whole order or just the affected items. Please notify us by email on northwestmtb@aol.com or by calling the shop on 0161 428 3311 & include pictures of the damaged box/packet & product and we will deal with it quickly.

Please return using a signed for delivery service like Royal Mail or a Courier that requires a signature on receipt by one of our staff.

For purchased in store products, returns, refunds or exchanges are only available in store using the same payment method as purchase.

All refunds under this returns policy will be paid within 2/5 days of us receiving the merchandise at the shop in it's original packaging to prevent any further damage.

Santa Cruz Nomad V4 CC XX1 27.5 Build Information

Brand : Santa Cruz

Code : Nom-CC-XX1

With each iteration we nudge the travel and geometry further towards the outer limits, and each time we surprise ourselves at just how completely rideable the end result remains.

The fourth generation design sees a dramatic shift to the lower-link mounted shock configuration. This is the first time that learnings from years of V10 development have translated across to one of our trail bikes.

The shock rate is now almost completely linear—which means feather-light small bump sensitivity right off the bat, a supportive midstroke and overall progression that you'd normally only experience on a DH bike. To keep the gravity vibe going we've ensured the Nomad can run both standard metric coil shocks and lighter air units to suit any preference.

Full shock compatibility creates challenges when trying to cram everything into the precious bottom bracket area. But the continued evolution of our carbon tech means we're able to create a svelt, strong, swingarm/front triangle combo that's as much art as it is engineering.

We even managed to squeeze in a flip-chip feature on the lower link too. Think of the high setting as "regular", the way the bike's mostly meant to be ridden, and the low setting as being closer to full on DH status.

To handle all this new-found capability the geometry has adapted too. It's longer and lower-slung than ever to ensure maximum stability and confidence on absolutely everything.

The whole package is crowned with a raft of subtle yet essential details. Bolt-on downtube protectors and shuttle guards act as a helmet for your frame—a replaceable front line against abuse. An integrated shock fender has also been added to keep crud out of the suspension.

The crowning glory of the Nomad, however, has been in the making longer than the frame itself: the all new Santa Cruz Reserve carbon wheels.

Features

  • 148mm Rear Axle Spacing
  • 170mm VPP™ suspension
  • 27.5" wheels
  • Angular contact bearings maximize stiffness
  • Bolt-on shuttle guard and downtube protector
  • Collet axle pivots lock in place without pinch bolts
  • Double sealed pivots for long bearing life
  • Forged upper and lower links
  • Full carbon frame and swingarm
  • Internal carbon tubes ensure precise and hassle-free routing of derailleur and seat post cables
  • ISCG-05 tabs for chainguide compatibility
  • Molded rubber swingarm and downtube protection
  • Recessed lower link protected from rock strikes
  • Single grease port on lower link for swift and easy maintenance
  • Threaded Bottom Bracket

Additional Upgrades Available:

BOTTOM BRACKET

Upgrade to Hope Stainless BB (+£50)

WHEELS

Upgrade to Santa Cruz 'Reserve' Carbon Wheels (+ £1200)

Please call us to discuss these additional upgrades to your dream machine!!

Technical Information

Santa Cruz Nomad V4 CC Carbon XX1 Build:

Rear Derailleur SRAM XX1 Eagle 12 speed
Chainguide E13 TRS Race 1x Guide ISCG05
Shifters SRAM XX1 Eagle 12 speed
Brakes SRAM Code RSC
Rotors Avid Centerline - 180mm
Crankset SRAM XX1 Eagle 32t - 175mm
Cassette SRAM XG1295 Eagle 10-50t
Chain SRAM XX1 Eagle 12 speed
Handlebar Santa Cruz AM Carbon Bar - 35x800mm
Stem Burgtec Enduro
Grips Santa Cruz Palmdale Grips - Black
Headset Hope
Seatpost KS LEV Integra w/ Southpaw
Saddle WTB Volt Team
Front Tyre Maxxis Minion DHF 3C EXO TR - 27.5x2.5�
Rear Tyre Maxxis Minion DHR II EXO TR - 27.5x2.4�
Wheels i9 Torch Classic / WTB ASYM i29 - 27.5
Sealant/Tubes Stan�s Sealant



Sizing Information
  XS | Low / High S | Low / High M | Low / High L | Low / High XL | Low / High
Reach 386 / 390mm 416 / 420mm 436 / 440mm 456 / 460mm 486 / 490mm
Stack 587 / 584mm 596 / 593mm 605 / 602mm 614 / 611mm 623 / 620mm
Head Tube Angle 64.6 / 65° 64.6 / 65° 64.6 / 65° 64.6 / 65° 64.6 / 65°
Head Tube Length 90 / 90mm 100 / 100mm 110 / 110mm 120 / 120mm 130 / 130mm
Seat Tube Angle 74.1 / 74.5° 74.1 / 74.5° 74.1 / 74.5° 74.1 / 74.5° 74.1 / 74.5°
Seat Tube Length 375 / 375mm 390 / 390mm 420 / 420mm 450 / 450mm 480 / 480mm
Rear Center 431 / 430mm 431 / 430mm 431 / 430mm 431 / 430mm 431 / 430mm
Front Center 704 / 704mm 738 / 738mm 762 / 762mm 787 / 787mm 821 / 821mm
BB Height 339 / 344mm 339 / 344mm 339 / 344mm 339 / 344mm 339 / 344mm
BB Drop 15 / 10mm 15 / 10mm 15 / 10mm 15 / 10mm 15 / 10mm
Wheel Base 1135 / 1134mm 1169 / 1168mm 1194 / 1192mm 1218 / 1217mm 1252 / 1251mm
Top Tube Length 541 / 540mm 574 / 573mm 598 / 596mm 621 / 619mm 654 / 653mm
Standover 704 / 710mm 706 / 712mm 722 / 728mm 720 / 726mm 718 / 724mm

* Effective top tube
** Seat Tube length measured from center of BB to top of seat tube
