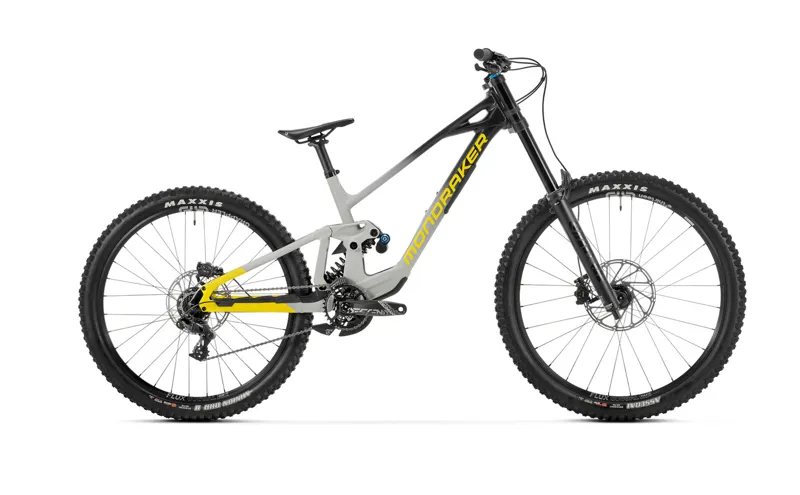

Mondraker Summum R Mullet Downhill Mountain Bike in Fog Grey

Season:2026

Brand:Mondraker

Code:010.2609

The Mondraker Summum R Mullet Downhill Bikeembodies their passion for technology, competition and Downhill racing. It is no coincidence that Mondraker's first ever product was a Downhill bike… and the Summum has become the most successful race bike at Mondraker and a true benchmark.

Your best new tool for the job in Downhill Racing.
Developed under the cutting-edge and most advanced expertise this new Summum has been forged on the toughest World Cup race tracks across the globe with sweat, adrenaline and victories of our Mondraker Factory DH racing team racers.

Winning Proven Kinematics
This new model features an all-new updated Zero Suspension System kinematics delivering better performance with more mid stroke support -where you need it the most- that translates into a faster bike, improved handling and enhanced suspension suppleness off the top.

DH-Specific Forward Geometry
Longer reachs, slacker head tube angles… directly inherited from World Cup racing. Key refinements that you will benefit from when you put the bike to the test.

Proven By The MFR Team
This new Summum is the result of all the racing development from our MFR DH team over the past few years.

Technical Information

Frame
Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit
Sizes
S / M / L / XL MX
Rear shock
Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
CP104 compression, M rebound, Rezi BP101. Spring rate: S size 400 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs
Fork
Fox 40 29 Float GRIP Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 52mm. Settings: 3-pos compression dial, air preload
Headset
Onoff ZS56/ZS56, 1-1/8", 1-1/8" steerer tube, 42x30x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 62mm
Stem
Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer
Handlebar
Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips
Onoff Beehive, 1lock-on, 135mm
Seatpost
Onoff S3 DH Alloy, diameter 31.6mm, length 300mm
Saddle
Ergon SM10 DH Black
Front brake
Sram DB8, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram DB8, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram DB8, tool reach adjust, lever pivot bushings
Rims
Mavic Deemax BikePark 29, 30mm internal width, 32 holes
Spokes
Mavic 32 steel flat spokes
Front hub
Mavic Boost 20x110mm, IS 6 bolts
Rear hub
Mavic 12x157mm, ID360 freewheel, sealed bearings, IS 6 bolts, HG freehub
Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tire
Maxxis Dissector 27''5x2.4 WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Crankset
Sram Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56´5
Rings
34T, steel, X-SYNC
Bottom bracket
Sram DUB BSA, sealed bearings, 83mm
Chain
Sram PC1110 11s, Powerlock
Front derrailleur
e*Thirteen Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
Rear derrailleur
Sram GX DH, 7s, medium cage
Shift levers
Sram trigger GX DH 7s, X-actuation 1:1
Casette
Sram PG 720 11-25T, 7s
Derailleur hanger
Mondraker M068
Others
*Optional geometry kit: +-1º / +-2º headset cups
