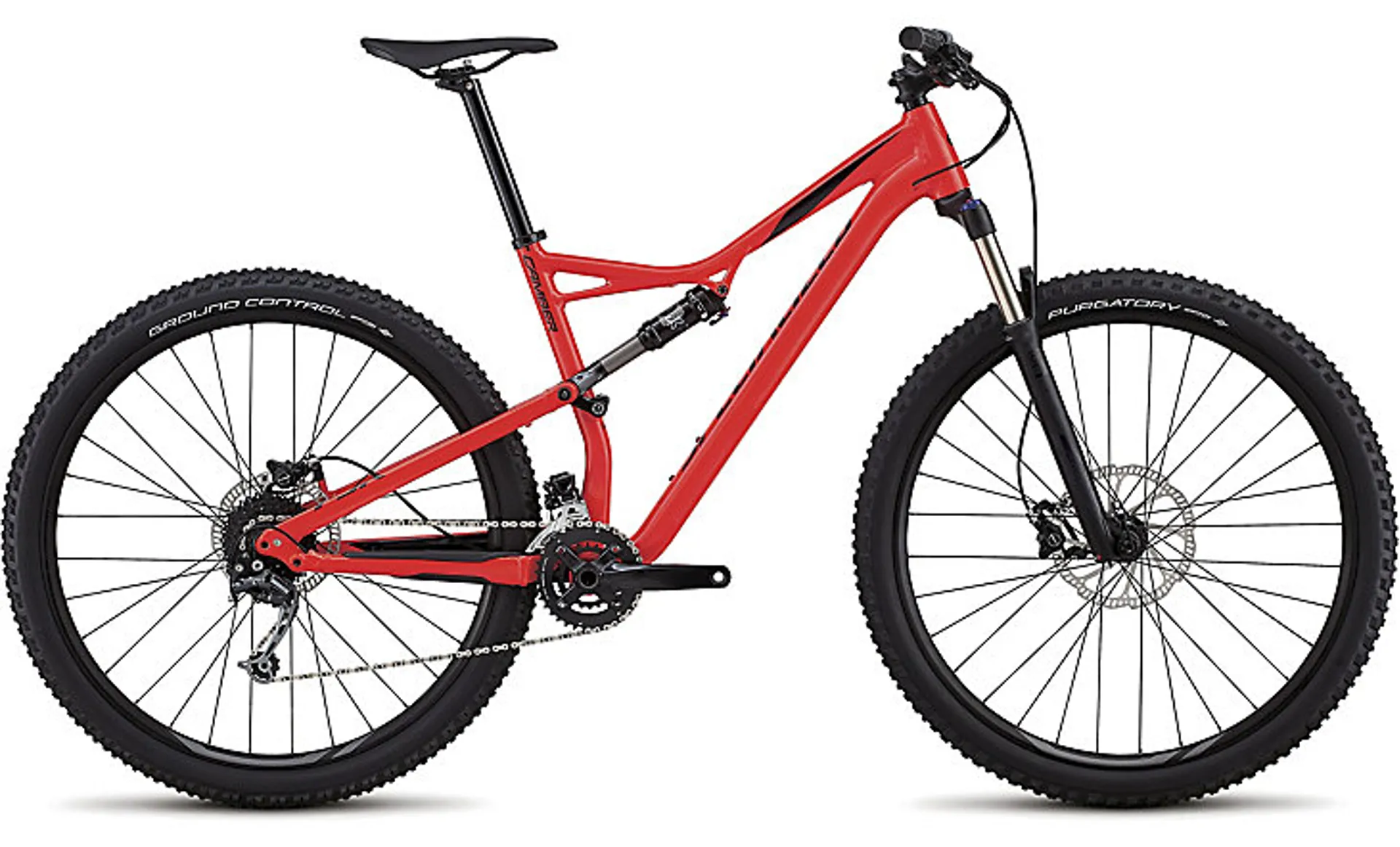

Specialized 2018 Camber 29 - Rocket Red

Season:2018

Brand:Specialized

Code:186641239840

The Camber 29 is just begging to become someone's first trail tool. It's versatile, durable, and ready to be thrown up and down the trails over and over again with maximum efficiency.

In other words, it blends all of the trail bike characteristics that you want with the XC climbing prowess that you need. This is achieved by thoughtfully combining our M5 alloy Trail Chassis with a Camber FSR rear end. The combination results in blending lightweight, rigidity, and durability in one package.

At both ends of the bike, you'll find sufficient travel lengths that deliver plenty of plush suspension—all without going overboard on big hit capability. This means that you don't have to sacrifice efficiency, weight, or sheer speed to ride how you want. And with our Trail 29 Geometry and lightweight, stiff, and smooth Concentric Pivot at the rear, we can guarantee it.

For the build, we selected durable, performance-driven components like Tektro Gemini hydraulic disc brakes, a reliable mix of Shimano and SRAM shifting, a custom X-Fusion rear shock, and a RockShox Recon RL fork.



  • An M5 alloy Trail Chassis w/ Camber FSR rear end has been paired with our Trail 29 Geometry to create a bike that's fast, durable, and just at home on the climbs as it is mowing over rock gardens. It also features the shortest, most nimble rear end possible, and internal cable routing to make clean lines and reliable shifting through any condition.
  • A RockShox Recon RL heads-up the travel up front, and lets you adjust rebound and lockout.
  • A Shimano Deore rear derailleur will win your heart with reliable shift after reliable shift. It's built with durability in mind, so it's tougher than your average rear mech.
Technical Information
FRAME
Specialized M5 Aluminum, Trail Geometry, threaded BB, internal cable routing, 12x142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 120mm of travel
FORK
RockShox Recon RL 29, Solo Air, rebound adjust, lockout, 51mm offset, 15mm Maxle® Lite thru-axle, 120 mm of travel
REAR SHOCK
Custom X-Fusion 02 Pro RL, rebound adjust, lockout, 205x53mm
FRONT HUB
Specialized, sealed cartridge bearing, 15x100mm thru-axle, 32h
REAR HUB
Specialized, sealed cartridge bearings, 12x142mm thru-axle, 32h
SPOKES
Stainless, 14g
RIMS
Double-wall, 27mm internal width, 32H
INNER TUBES
Standard, Presta valve
FRONT TYRE
Purgatory, GRIPTON compound, 2Bliss Ready, 29 x 2.3"
REAR TYRE
Ground Control, Gripton compound, 2Bliss Ready, 29 x 2.3"
CRANKSET
SRAM S-1255, GXP, 24mm spindle
CHAINRINGS
36/22T
BOTTOM BRACKET
SRAM GXP, 73mm
SHIFT LEVERS
Shimano Alivio, 9-speed
FRONT DERAILLEUR
SRAM GX, 2x10
REAR DERAILLEUR
Shimano Deore M592, Shadow Design, 9-Speed
CASSETTE
SRAM PG 920, 9-speed, 11-34t
CHAIN
KMC X10, 10-speed w/ Missing Link™
FRONT BRAKE
Tektro Gemini Comp, hydraulic disc, resin pad, 180/200mm rotor
REAR BRAKE
Tektro Gemini Comp, hydraulic disc, resin pad, 160/180mm rotor
HANDLEBARS
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 750mm width
GRIPS
Specialized Sip Grip, half-waffle, slip-on
STEM
Specialized, 3D forged alloy, 4-bolt, 7-degree rise
SADDLE
Body Geometry Henge Sport, steel rails, 143mm
SEATPOST
Alloy, 2-bolt clamp, 12.5mm offset, 30.9mm, anti-corrosion hardware
SEAT BINDER
Alloy, 34.9mm
PEDALS
Specialized Platform, Cr-Mo, 9/16" spindle



Sizing Information
GEOMETRY
  S M L XL XXL
BB Drop 42mm 42mm 42mm 42mm 42mm
BB Height 330mm 330mm 330mm 330mm 330mm
Bike Standover Height 734mm 739mm 752mm 764mm 778mm
Chainstay Length 437mm 437mm 437mm 437mm 437mm
Fork Length, Full 531mm 531mm 531mm 531mm 531mm
Fork Rake/Offset 46mm 46mm 46mm 46mm 46mm
Front Center 673mm 701mm 726mm 763mm 788mm
Head Tube Angle 68.5° 68.5° 68.5° 68.5° 68.5°
Head Tube Length 95mm 95mm 115mm 145mm 170mm
Reach 399mm 427mm 445mm 471mm 487mm
Seat Tube Angle 75° 75° 75° 75° 75°
Seat Tube Length 396mm 430mm 468mm 523mm 523mm
Stack 609mm 609mm 627mm 655mm 678mm
Top Tube Length, Horizontal 562mm 590mm 613mm 647mm 669mm
Trail 97mm 97mm 97mm 97mm 97mm
Wheelbase 1107mm 1135mm 1160mm 1197mm 1222mm
