The new Orange Clockwork EVO 27.5 in Soda Orange
The new Orange Clockwork EVO 27.5 in Soda Orange
Orange Bikes

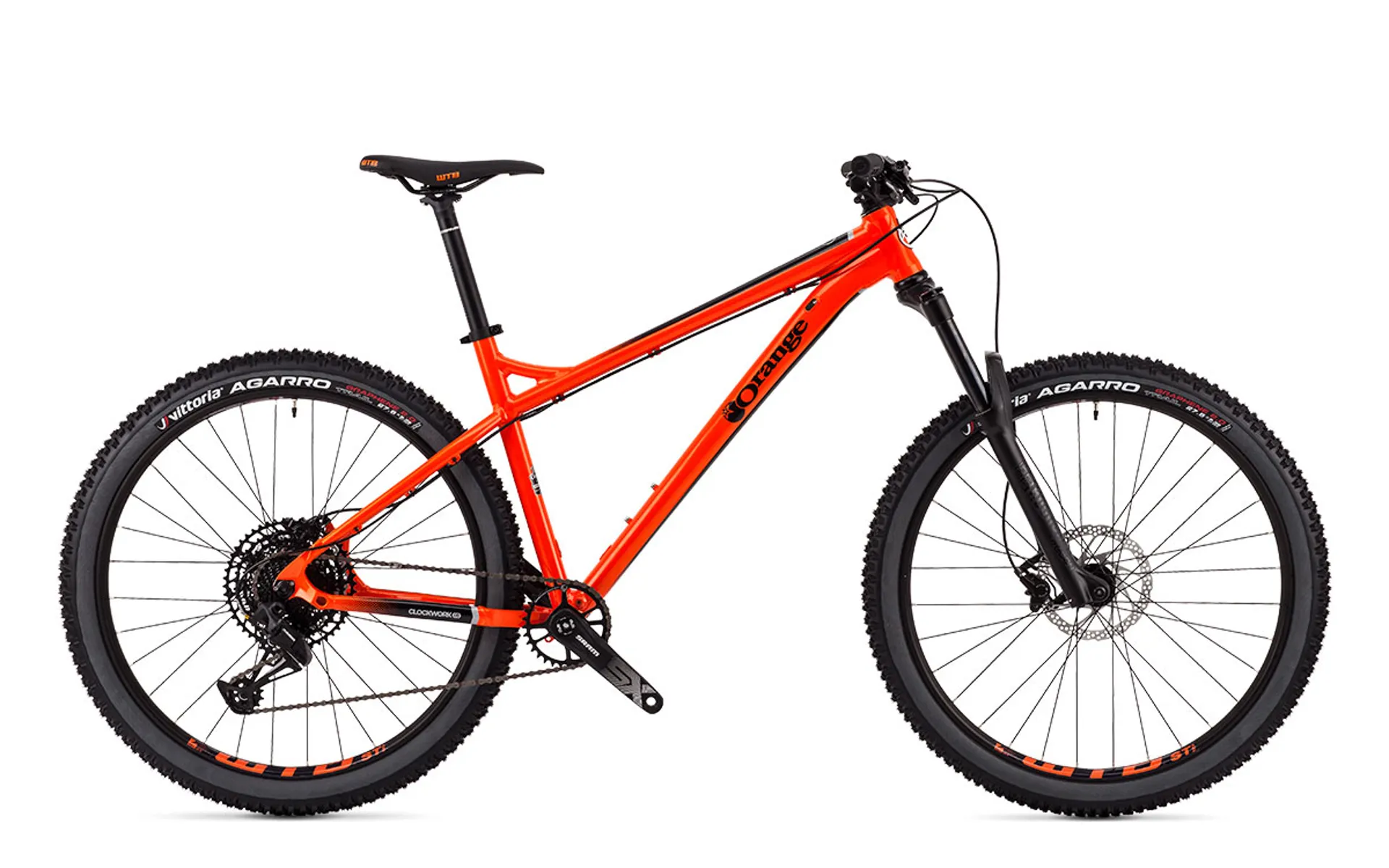

2020 Orange Clockwork Evo 27.5 Comp - Orange

£1,350.00
Click & Collect for Free
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on the Undetermined

Hassle free returns

Returns: We hope everything arrives to you as expected.  If a order(s) is broken or spoiled when it is delivered then you should notify us as soon as possible or in any case within 7 days of delivery, otherwise the returns policy becomes invalid.

You will have the option of returning the whole order or just the affected items. Please notify us by email on northwestmtb@aol.com or by calling the shop on 0161 428 3311 & include pictures of the damaged box/packet & product and we will deal with it quickly.

Please return using a signed for delivery service like Royal Mail or a Courier that requires a signature on receipt by one of our staff.

For purchased in store products, returns, refunds or exchanges are only available in store using the same payment method as purchase.

All refunds under this returns policy will be paid within 2/5 days of us receiving the merchandise at the shop in it's original packaging to prevent any further damage.

2020 Orange Clockwork Evo 27.5 Comp - Orange Information

Season : 2020

Brand : Orange Bikes

Code : B20CLEVOCOMP

The new Clockwork EVO sits cheekily between the Clockwork and the full-gas aggressive Crush, firmly hitting a sweet spot for serious minded riders. Far from sedate, for 2020 the Clockwork EVO gets a proper frame overhaul, with and extra 10mm of fork travel to 140mm, a slacker head angle at 65°, and a lower bottom bracket to keep that old CofG low. Some lovely new cable routeing details complete the package of this performance hardtail. Those riders bragging about their hardcore Crushes had better watch out.

If you're looking for a fast, lean and wild riding trail hardtail this is the bike you're looking.

CLOCKWORK EVO GEOMETRY
6061-T6 Custom Butted Aluminium
Frame Size S M L XL
Seat Tube Length 16" 17" 18" 20"
A. Head Angle 65° 65° 65° 65°
B. Seat Angle 74° 74° 74° 74°
C. Top Tube 619 625 638 654
D. Effective TT 610 630 650 670
E. BB Height (axle diff) -58 -58 -58 -58
E. BB Height (from ground) 296 296 296 296
F. Chainstay 425 425 425 425
G. Head Tube 100 110 110 120
H. Wheelbase 1164 1186 1206 1227
J. Reach 434 451 471 489
K. Stack 612 621 621 630
O. Fork Offset 46 46 46 46
Stem Length 50 50 50 50
Standover 658 676 694 730

Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 710 mm Ø tyre.

TECHNICAL INFO
FORK TRAVEL
OPTIMUM MAXIMUM MINIMUM
140 mm 140 mm 140 mm

Rear Hub 12 x 148 mm Boost
Seatpost Ø 30.9 mm
Seat Clamp Ø 34.9 mm
BB Shell 73mm ISCG05
1.1/8" Headset Upper: ZS44/28.6
Lower: EC44/40
RIDE GUIDE
  Downhill
  Freeride
  Enduro
  All Mountain
  Trail
  XC Racing
  Bike Packing
  Gravel



Technical Information

FRAME AND FORK

6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 27.5.

Rear Shocks
N/A
Headsets
FPD 44mm
Forks
RockShox Recon RL 140mm 27.5
Swingarms
Bolt Type Allen Key Head (Boost 148mm Hub)

DRIVETRAIN

Chain Device
Not Included
Bottom Brackets
SRAM DUB
Chainsets
SRAM SX Eagle 32t
Rear Mech
SRAM SX Eagle 12spd
Chains
SRAM SX Eagle
Shifters
SRAM SX Eagle
Cassettes
SRAM SX Eagle 1210 11-50T

WHEEL AND TYRES

Rim Decals
Standard Rim Decals
Wheelsets
WTB ST i27 on Strange 27
Tyres
Vittoria Agarro 2.35 27.5

BRAKING

Brakes
Shimano MT400

FINISHING KIT

Seatposts
Strange Post 400 30.9
Seat Clamps
Strange QR
Stems
Strange Stalk 40mm
Saddles
WTB Silverado Sport
Handlebars
Strange 0.5" Riser 780mm
Grips
Strange 130 Single Lock-On Black
Pedals
Kore Rivera Thermo

ACCESSORIES



Sizing Information
BIKE SIZING GUIDELINES
S
5'4" — 5'7"
M
5'6" — 5'10"
L
5'9" — 6'1"
XL
6'0" — 6'5"

Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. We've added some more explanation on sizing theory here: What size frame do I need?



Professional Opinion
The facts

WHY THE CLOCKWORK EVO?



F: 140MM | W: 27.5

  • Super Lightweight Frame Designed in Britain
  • 5 year frame warranty with Limited Lifetime Crash Replacement
  • Custom butted 6061-T6 aluminium frame
  • Improved standover and EVO geometry
  • Geometry revised for 140mm travel fork
  • Bolt through 12 x 148 rear hub spacing

The Clockwork EVO delivers the benchmark Orange Bikes ride with dependable performance.

Prefer fast rolling 29 inch wheels? Try the Clockwork Evo 29.
