The thrasher's all-terrain play machine.
The thrasher's all-terrain play machine.
Santa Cruz

2019 Santa Cruz 5010 CC Frame Only Carbon Black - LARGE ONLY

£3,099.00
Click & Collect for Free
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on the Undetermined

Hassle free returns

Returns: We hope everything arrives to you as expected.  If a order(s) is broken or spoiled when it is delivered then you should notify us as soon as possible or in any case within 7 days of delivery, otherwise the returns policy becomes invalid.

You will have the option of returning the whole order or just the affected items. Please notify us by email on northwestmtb@aol.com or by calling the shop on 0161 428 3311 & include pictures of the damaged box/packet & product and we will deal with it quickly.

Please return using a signed for delivery service like Royal Mail or a Courier that requires a signature on receipt by one of our staff.

For purchased in store products, returns, refunds or exchanges are only available in store using the same payment method as purchase.

All refunds under this returns policy will be paid within 2/5 days of us receiving the merchandise at the shop in it's original packaging to prevent any further damage.

2019 Santa Cruz 5010 CC Frame Only Carbon Black - LARGE ONLY Information

Season : 2019

Brand : Santa Cruz

Code : SC-MY19-5010-F-CC-CAR-


The 5010 is the most fun you can have on two off-road wheels, and Danny MacAskill’s wee bike of choice. Turning trails into pumptracks and logs into launches this bike begs to spend as much time above the ground as on it.

A laser sharp, agile trail whip that turns on a dime and loves to pop and play. The 130mm-travel 5010 sports short chainstays and a low BB for a uniquely playful character and an insatiable appetite for negotiating steep, technical climbs. When it’s time to descend, the bike’s 66.2/66.5-degree head tube angle (adjusted via flip chip) and generous reach/short stem combo equate to precise, confident handling.

This short-travel pocket rocket is packaged to be fast and nimble yet tough enough to take a beating. From dirt to rocky tech, 4X to BMX, this bike doesn’t give a XXXX what you do with it.

The 5010’s balance and poise makes takes riders from uncertain neophyte to fledging flyboy. While some bikes are good at going up and down the 5010 is a bike that’s great at going up, down, left, right, triangle, square, up, up, up and away!

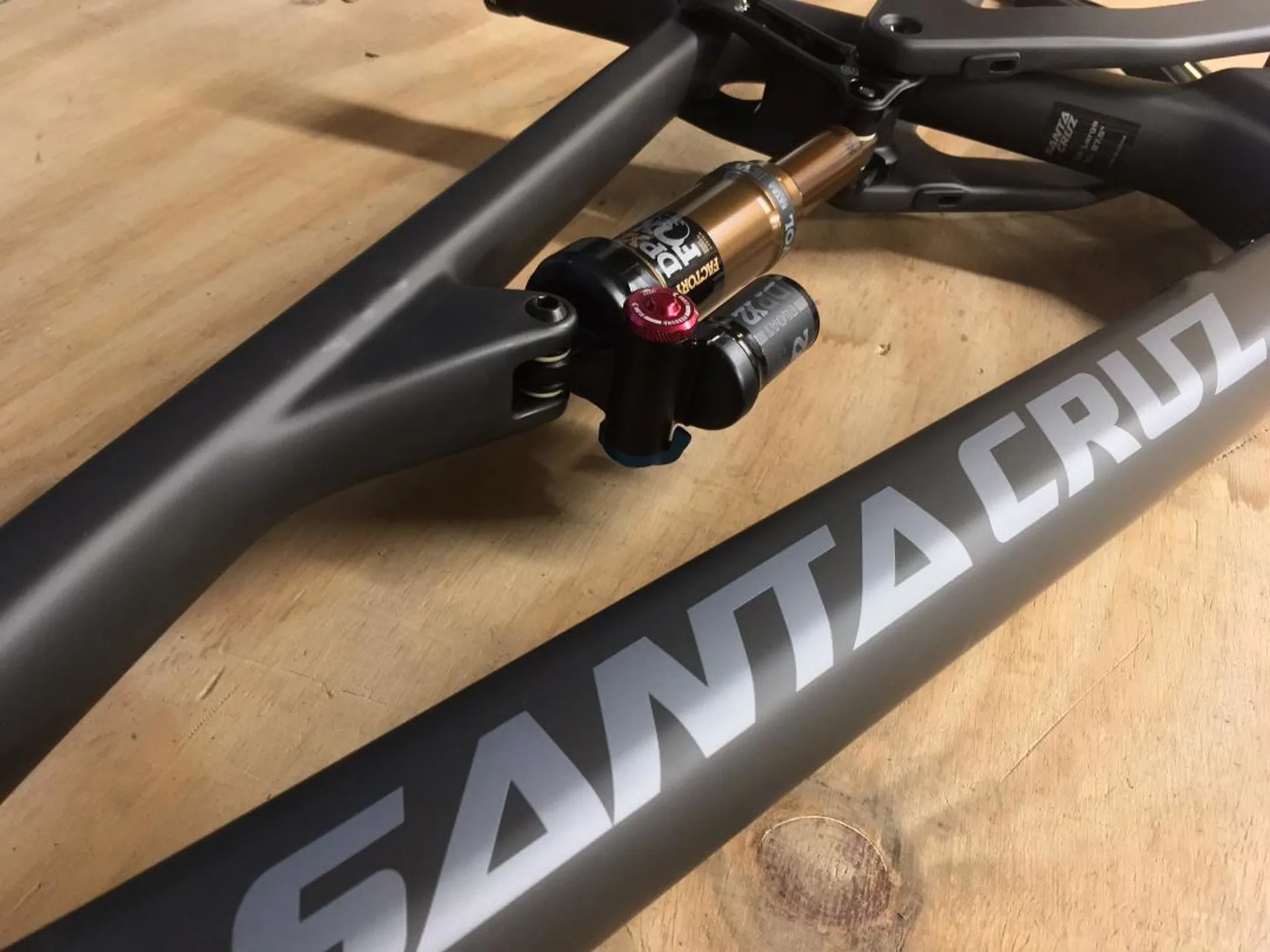

The upper-link driven shock VPP suspension is configured to be sharp and responsive. A firm beginning stroke makes for a responsive, snappy pedaling and provides support for small bump, bump-jump playfulness, while the progressive curve offers the bottom-out resistance to make it feel like there’s a lot more travel than there actually is.

There’s also more than enough tire clearance to run just about any size tire. We spec a variety of tire/rim combos, including 2.6-inch tires on Reserve 37 rims because we feel it’s the sweet spot of rock crawling traction and sportiness, but there’s room to run 2.8-inch tires if that’s your thing.

It’s considered the deep cut in the Santa Cruz range by the riders, like Danny MacAskill, who really know. While people busily overbike, 5010 owners get to the source. It’s the thrasher’s tool.

Sizing Information

High

    XS S M L XL
  Rider Height 1.42m+ 1.55m+ 1.65m+ 1.75m+ 1.85m+
A Reach 390mm 420mm 440mm 460mm 490mm
B Stack 570mm 589mm 598mm 607mm 634mm
C Head Tube Angle 66.5° 66.5° 66.5° 66.5° 66.5°
D Seat Tube Length 370mm 380mm 405mm 430mm 460mm
E Front Center 679mm 717mm 741mm 765mm 807mm
F BB Height 334mm 334mm 334mm 334mm 334mm
G BB Drop 20mm 20mm 20mm 20mm 20mm
H Wheelbase 1106mm 1142mm 1166mm 1190mm 1232mm
I Chainstay Length 425mm 425mm 425mm 425mm 425mm
J Head Tube Length 100mm 120mm 130mm 140mm 170mm
K Top Tube Length 538mm 574mm 598mm 620mm 660mm
L Seat Tube Angle 75.2° 75.2° 75.2° 75.2° 75.2°
M Standover Height 690mm 710mm 713mm 713mm 712mm
N Eye to Eye Length

Low

    XS S M L XL
  Rider Height 1.42m+ 1.55m+ 1.65m+ 1.75m+ 1.85m+
A Reach 387mm 417mm 437mm 457mm 487mm
B Stack 573mm 591mm 600mm 609mm 636mm
C Head Tube Angle 66.2° 66.2° 66.2° 66.2° 66.2°
D Seat Tube Length 370mm 380mm 405mm 430mm 460mm
E Front Center 679mm 717mm 741mm 765mm 807mm
F BB Height 330mm 330mm 330mm 330mm 330mm
G BB Drop 24mm 24mm 24mm 24mm 24mm
H Wheelbase 1106mm 1143mm 1167mm 1191mm 1233mm
I Chainstay Length 426mm 426mm 426mm 426mm 426mm
J Head Tube Length 100mm 120mm 130mm 140mm 170mm
K Top Tube Length 539mm 575mm 598mm 621mm 661mm
L Seat Tube Angle 74.9° 74.9° 74.9° 74.9° 74.9°
M Standover Height 684mm 704mm 707mm 708mm 707mm
A Eye to Eye Length

* Effective top tube
** Seat Tube length measured from center of BB to top of seat tube
