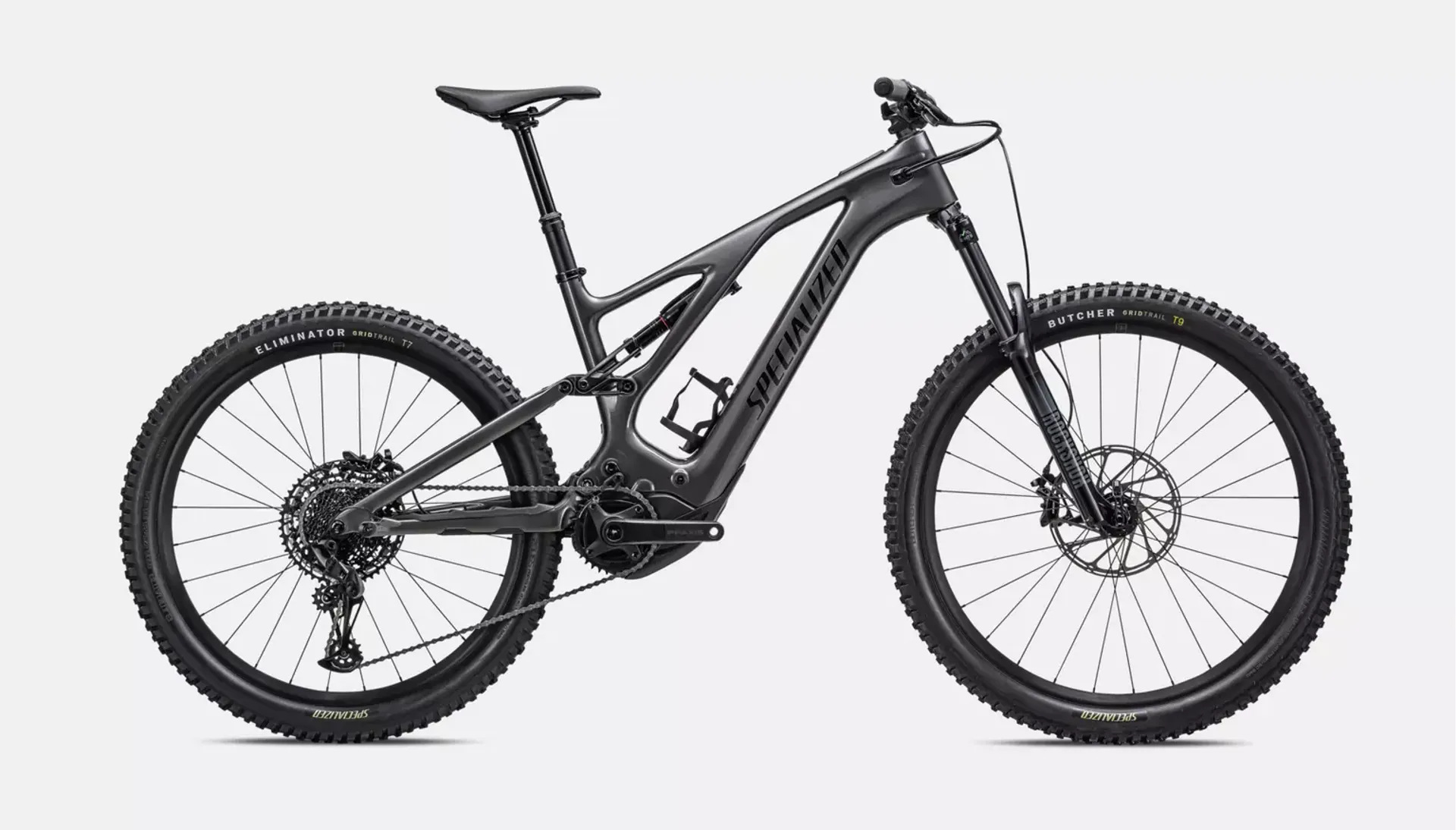

The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality usable power and ride anywhere range. It’s the distillation application and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction Levo has set the bar every other e-MTB aims for and the new Levo raises that bar again.
It starts with our Turbo Full Power 2.2 motor and Turbo Connect Unit (TCU) which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride and when you want to do it. Levo also shatters limitations when it comes to range amplifying your effort for up to five hours of trail time. Now you can ride farther and explore more than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day it’s the ride that matters. Believe it.
More climbing more descending more miles more fun. Spec’d with a no-fuss SRAM SX/NX drivetrain trail-taming RockShox suspension and a lightweight durable alloy wheelset the all-new Turbo Levo delivers more of everything that you love about trail riding.
COCKPIT
Stem
Alloy Trail Stem, 35mm bar bore
Saddle
Body Geometry Bridge Saddle, steel rails
Tape
Specialized Trail Grips
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
SeatPost
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm
FRAMESET
Seat Binder
Alloy, 38.6mm
Frame
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
WHEELS
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Spokes
DT Swiss Industry
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Inner Tubes
Standard, Presta Valve
E-BIKE
Wiring Harness
Custom Specialized wiring harness
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Motor
Specialized 2.2, Custom Rx Trail Tuned Motor
Battery
Specialized M3-700, Integrated battery, 700WH, SBC-B22
UI/Remote
Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
DRIVETRAIN
Crankset
Praxis forged M30, custom offset, 160mm
Cassette
SRAM NX Eagle PG-1230, 12-speed, 11-50t
Chain
SRAM NX Eagle, 12-speed
Shift Levers
SRAM SL SX Eagle, 12-speed
Rear Derailleur
SRAM SX Eagle, 12-speed
Chainrings
SRAM X-Sync Eagle, 104 BCD, 34T, steel
SUSPENSION
Rear Shock
RockShox Deluxe Select R, rebound adjust, S1: 52.5x210mm, S2-S6: 55x210mm
Fork
SRAM 35 Silver 29, Turnkey damper, S1: 150mm travel, S2-S6: 160mm travel
BRAKES
Rear Brake
SRAM Guide RE, 200mm
Front Brake
SRAM Guide RE, S1-S3: 200mm, S4-S6: 220mm
* Specifications are subject to change without notice
Please note that this bike does not come with pedals.
