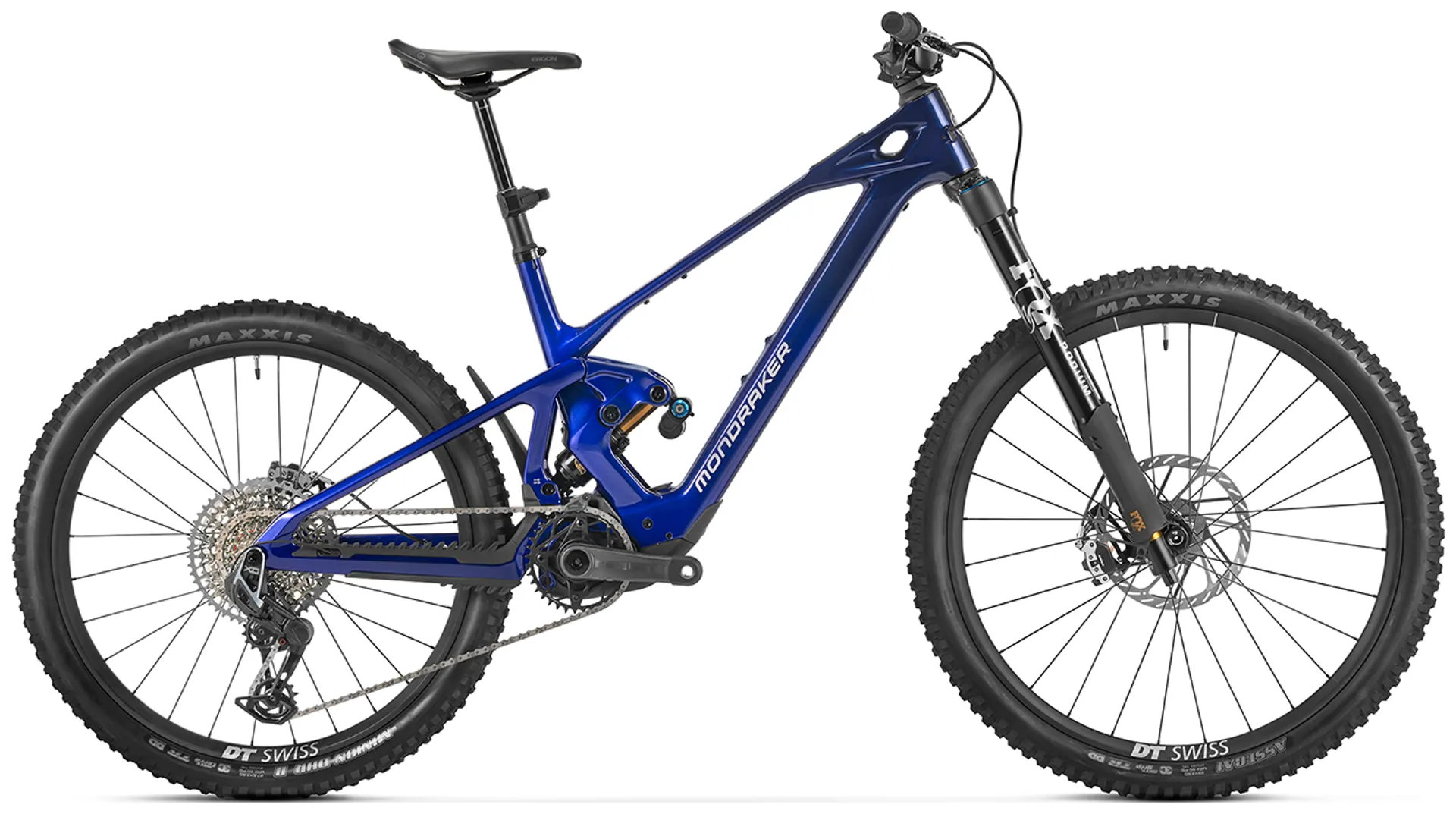

Mondraker Zendit XR Electric Mountain Bike in Admiral Blue

Season:2027

Brand:Mondraker

Code:010.2721

Mondraker has never been a brand to play it safe, and the all-newZendit EMTBis a testament to that "no-holds-barred" philosophy. Positioning itself as the undisputed flagship of the Spanish brand’s e-MTB range, the Zendit isn’t just an evolution; it’s a high-performance tool forged from over a decade of electric bike development and the rigorous demands of the Mondraker Factory Racing team.Achieved from the latest frame designand ZERO suspension kinematics, with seamless integration of the Avinox drive system.

At the heart of the Zendit lies a chassis designed specifically to handle the most aggressive enduro terrain. By evolving their signature ZERO Suspension System, Mondraker has optimised the kinematics to stay supple over chatter while maintaining the mid-stroke support required for heavy hits.

This mechanical prowess is paired with the seamless integration of the Avinox drive system. Known for its class-leading torque-to-weight ratio and intuitive power delivery, the Avinox motor ensures that "the nastiest climbs" become mere transitions between the descents the Zendit was truly born for.

Staying true to the brand's heritage, the Zendit utilizes an aggressive iteration of Forward Geometry. This translates to a long wheelbase and a planted front end, providing unwavering stability when the trails get steep and technical. However, thanks to the integration of the latest frame materials and the compact motor layout, the bike retains a level of agility that belies its enduro stature.

Rather than adapting an existing platform, the ZENDIT frame was designed to house the most advanced motorsystem on the market.This frame is highly advanced in both design andmanufacture. For the first time 6-Axis CNC machines areused for frame drilling and finishing in place of handfinished frames.

Technical Information
FrameZendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
SizesS: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear ShockFox Float X2 Factory Kashima 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.
Shock SettingsCS 30 compression, 1,1 Bleed, RS40 rebound, Rezi B40, LML, Long MCU, 0 volume spacers.
ForkFox Podium 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm thru axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.
HeadsetAcros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, with blocklock: S, M / without blocklock: ML, L, XL.
StemOnoff S9 30mm 0º, Full CNC, 31.8mm barbore.
HandlebarOnoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
GripsOnoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size.
SeatpostRockShox Reverb AXS, diameter 31.6mm, w/AXS Pod Controller Rocker Paddle. S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm.
SaddleErgon SM10 E-Mountain Black.
Front BrakeSram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear BrakeSram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake LeverSram Maven Ultimate , Carbon lever, SwingLink and lever pivot bearings, tools-free reach adjust
RimsDT Swiss, Carbon
SpokesDT Hybrid II Straightpull, w/DT ProLock Squorx ProHead aluminum nipples, Three-cross (1:1) pattern.
Front HubDT Swiss 350, 20x110mm Boost, Disc IS (6-bolt).
Rear HubDT Swiss 350, 12x148mm Boost, Disc IS (6-bolt), Sram XD Steel (SRAM) freehub body, 72T Ratchet DEG DF System.
Front TireMaxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead
Rear TireMaxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
Cranksete*thirteen Helix Race Carbon e*spec. All sizes: 155mm
RingsSram XX Eagle 36T T-Type, 104BCD, steel, CL55
ChainSram GX Eagle T-Type, 12s, w/Powerlock
Rear DerrailleurSram X0 Eagle AXS T-Type, 12s
Shift LeversSram Eagle AXS Pod Controller Rocker Paddle w/discrete clamp, 12s
CassetteSram XS 1275, 10-52T, T-Type, 12s
DisplayAvinox DP100 Display / Avinox BC100 Wireless Controller (L&R)
MotorAvinox Drive Unit
BatteryAvinox 800Wh Battery / Avinox 4A Charger
Weight23.1 Kg
