Whyte

2022 Whyte E-505 Electric Hardtail Mountain Bike - Black

Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

Returns: We hope everything arrives to you as expected.  If a order(s) is broken or spoiled when it is delivered then you should notify us as soon as possible or in any case within 7 days of delivery, otherwise the returns policy becomes invalid.

You will have the option of returning the whole order or just the affected items. Please notify us by email on northwestmtb@aol.com or by calling the shop on 0161 428 3311 & include pictures of the damaged box/packet & product and we will deal with it quickly.

Please return using a signed for delivery service like Royal Mail or a Courier that requires a signature on receipt by one of our staff.

For purchased in store products, returns, refunds or exchanges are only available in store using the same payment method as purchase.

All refunds under this returns policy will be paid within 2/5 days of us receiving the merchandise at the shop in it's original packaging to prevent any further damage.

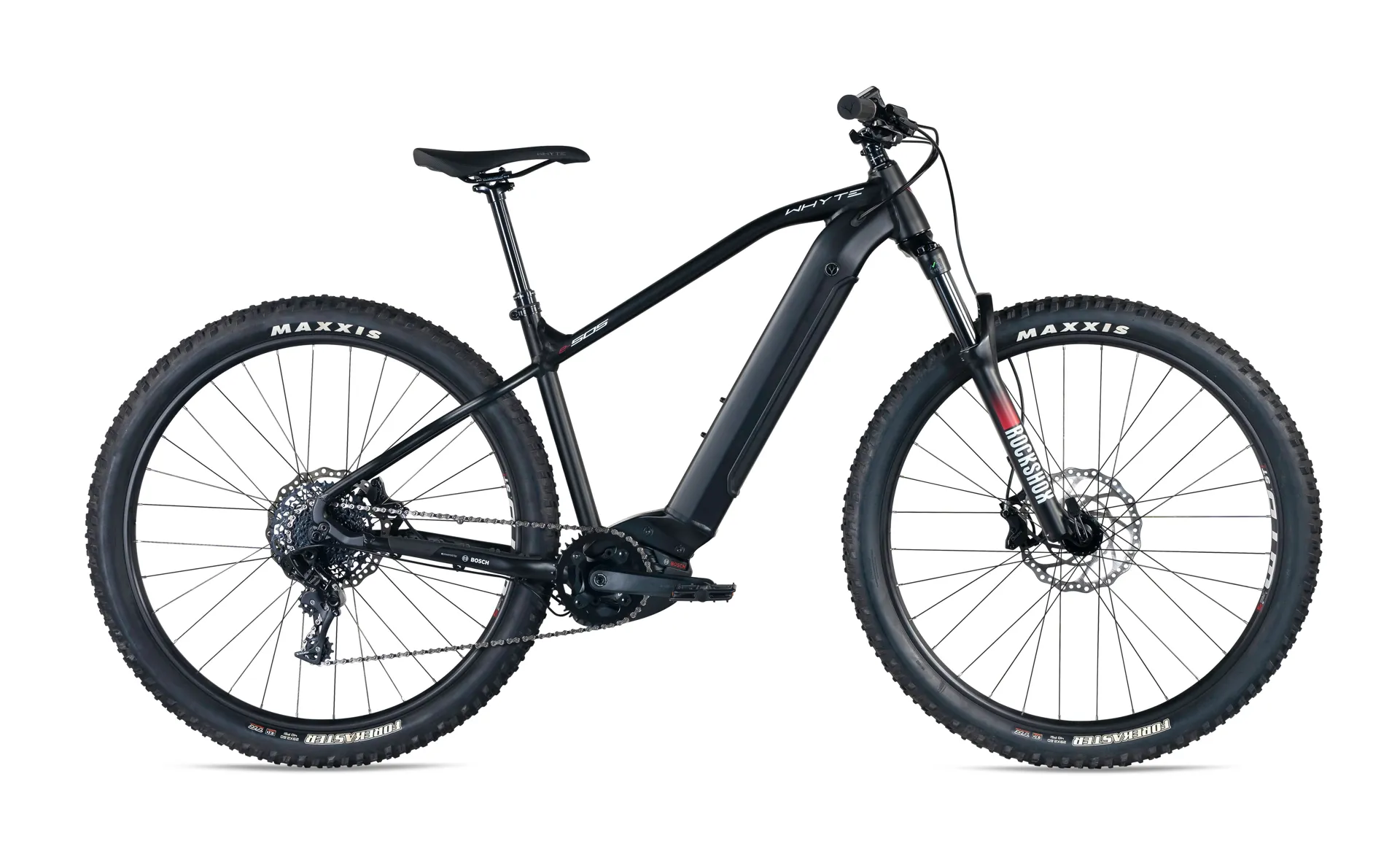

2022 Whyte E-505 Electric Hardtail Mountain Bike - Black

Season:2022

Brand:Whyte

Code:WE505

Available here in Black / Matt Diesel, the Whyte E-505 V1 Hardtail electric mountain bike is one of the new 500 series - hardtails which combine exceptional handling with the ride performance and reliability of the Bosch e-system.

The 29” wheels roll fast and help give enhanced top end speed.

Bosch's class-leading Gen 4 Performance Line CX Drive Unit has all the power you'll need. There's 85Nm of torque so that you'll be conquering climbs. Add to that a 500wh battery which will give you plenty of range.

Suspension from the 120mm travel RockShox 35 Gold RL fork, puncture resistant 2.6" tubeless tyres and powerful 4 piston brakes ensure reliability, comfort and maximum grip to your ride.
Technical Information
e-BIKE SPECIFIC SPECIFICATION
DRIVE UNITPerformance CX 85NmBATTERY CHARGER2 Amp
BATTERY500WhDISPLAYPurion

SPECIFICATION
COLOURMatt Black Grey/RoseCASSETTESRAM PG-1130, 11-42, 11 Speed
FRAME6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost DropoutsCHAINKMC NPBK Sport, 11 Speed
FORKRockShox 35 Gold RL 29", 120mm Travel, 44mm Offset, DebonAir, Fast Black Coating, Adjustable Compression and Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle LiteCRANKSETWhyte, Steel narrow/wide, 165mm, Direct Mount 38T for Bosch Performance Line CX, Black
REAR SHOCKN/ABOTTOM BRACKETN/A
HEADSETFSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged BearingsSEATPOSTWhyte drop.it, 30.9, 150mm Travel, Paddle Remote Lever
REAR HUBAlloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 HoleSADDLEWhyte Custom, Triple Panel Design
FRONT HUBAlloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 HoleHANDLEBARWhyte 6061 Alloy, 30mm Rise, 31.8mm, 780mm Wide
SPOKESDT Swiss Champion 2.0mm, Black Stainless, Brass NipplesSTEMWhyte Alloy 6061, 35mm Extension
RIMSWTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 HoleGRIPSWhyte Lock-on V Grip
TYREMaxxis Forekaster TR 29" x 2.6" 60TPI, EXO Sidewall ProtectionBRAKES FRONTTektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount
SHIFT LEVERSSRAM GX, 11 SpeedBRAKES REARTektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount, Internal Routing
FRONT MECHN/ABRAKE LEVERSTektro Orion
REAR MECHSRAM GX, 11 SpeedPEDALSNone
WEIGHTTBC
